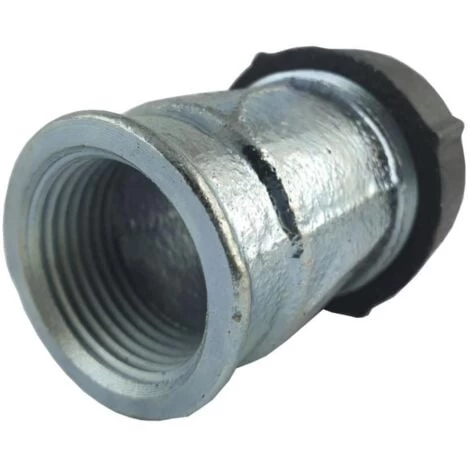

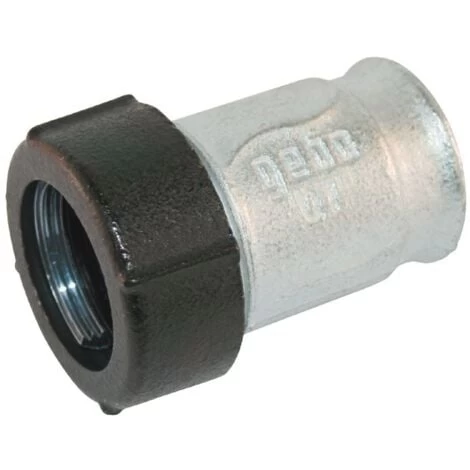

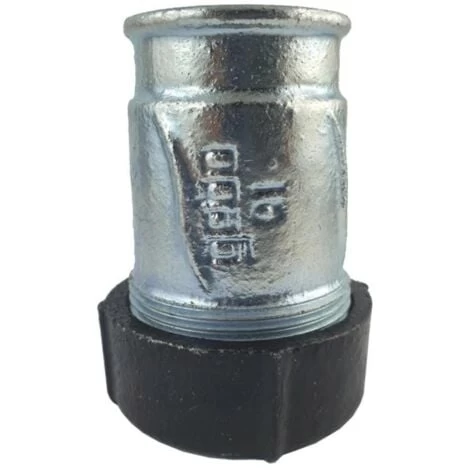

1 1/4 BSP Female Thread X 40mm Pipe Compression Joint Fittings Connector Union

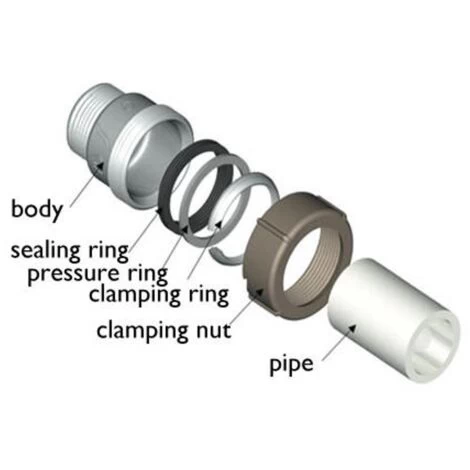

Fittings components:
– sleeve and nut – black malleable iron;
– compression ring – galvanized carbon steel;
– washer – galvanized carbon steel;
– sealing ring – NBR rubber.

Universal fittings – compression joint for plain-ended pipe on one side, female thread on the other;
Maximum operating pressure of 16 bar;
Maximum operating temperature 90C;
Clamps are used for connecting steel, PE and other pipes;

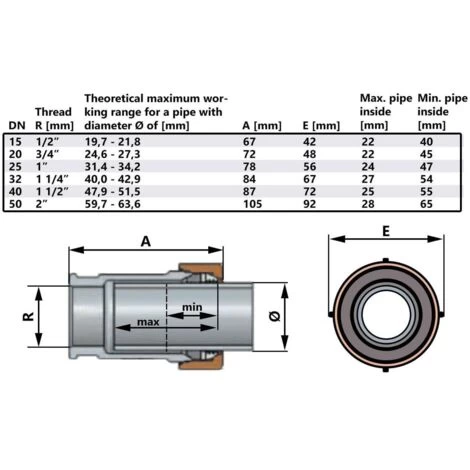

For pipes with theoretical range of application as shown in the table;
