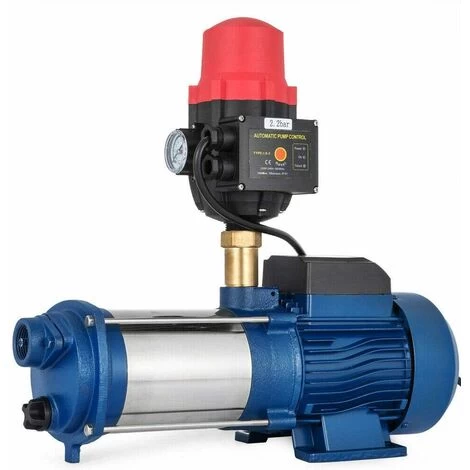

2200W Stainless Steel Centrifugal Pump Garden Irrigation Pump Water Jet Pump 160L/MIN + Pressure Switch

Product specifications:

Product: Centrifugal pump

Material: stainless steel and cast iron

Power supply: socket type

Type: MC-2200

color: blue

Voltage: 230 V / 50 Hz

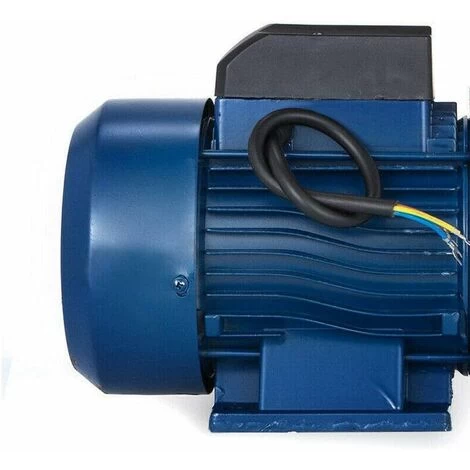

Power: 2200 W/3.0 HP

Speed: 2850 rpm

Maximum flow rate: 9.6 cubic meters / hour (160 l / min)

Maximum lift: 100 m (328 ft)

Connection between suction side and pressure side: 2.54 cm (1 inch)

Protection level: IP44

Packing size: 62*26*20cm

Total weight: 12.8kg

The package includes:

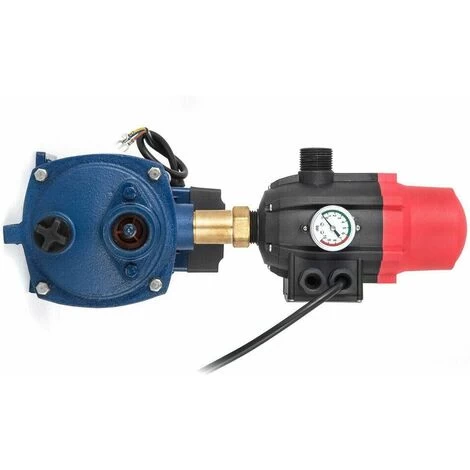

1 x centrifugal centrifugal pump with pressure switch

1 x product description

Note:

Please read the product description carefully before starting to install the pump! ! ! If possible, place the pump near the wellbore to maintain maximum flow. Make sure the suction height. Please provide a check valve for the suction line to ensure the
water column is present. Fill the pump and suction line with water before starting, otherwise it may cause idling. The diameter of the suction pipe should be 1″-1 1/4″ but not less than or greater than. Otherwise, the pump will not be able to provide
the proper power or pressure.
