- MaterialPolyethylene, Rubber
- Connection typeFemale
- Fitting shape30° elbow
- Diameter25.0 mm
- ManoMano ReferenceME59480212
- Product codeTIFR-MM-13060

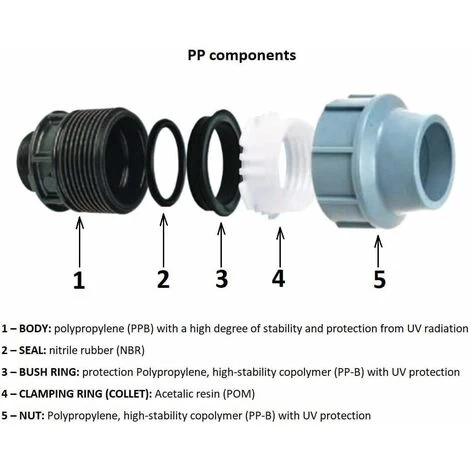

CONSTRUCTION: The fitting offered is of the elbow type and consists of the following components: black PPB body, blue PPB nut, NBR rubber O-ring, black PPB locking sleeve and acetal resin (POM) shim ring. ) white. The fitting has threaded compression ends.
FOR COLD WATER INSTALLATION: The connector offered is designed for indoor and water supply installations made with polyethylene pipes. It provides a proper seal and will allow you to connect pipes quickly and easily. This product also allows you to simply connect PP water pipes to pipes made of other materials and fittings, eg steel pipes, other galvanized fittings.
FOR SYSTEMS IRRIGATION: In addition to domestic applications, the elbow fitting is used in industrial irrigation systems. The elbow can be used to install functional sprinklers. With a convenient irrigation system, you can easily take care of your garden or recreational area. The elbow materials are UV resistant.
TECHNICAL DATA: The elbow can withstand a working pressure of up to 16 bar. The maximum operating temperature when connected to PE pipes is 45°C.
