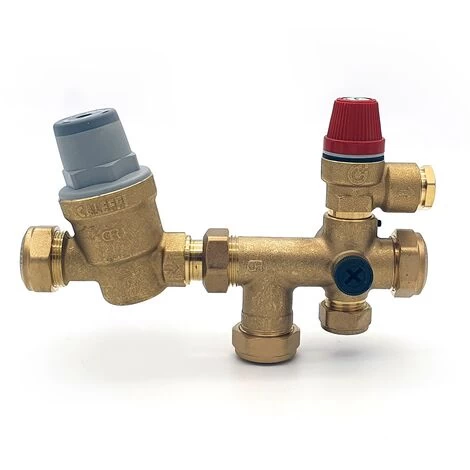

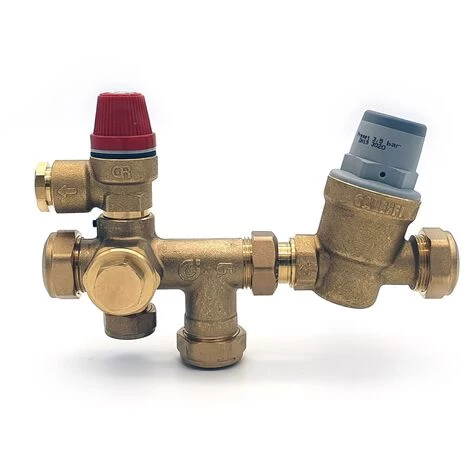

Altecnic – Caleffi 22mm 3.5/6 Bar Multibloc Inlet Control Valve 2 Piece

Altecnic – Caleffi 22mm 3.5/6 Bar Multibloc Inlet Control Valve 2 Piece

Inlet control valve for use on unvented hot water cylinder systems.

Includes:

Caleffi 3.5 Bar Inclined pressure reducing valve for safety group Series 5331

Altecnic – Caleffi 22mm Manifold 300015 and 312 6 Bar Pushfit SRV 312469

Specification:

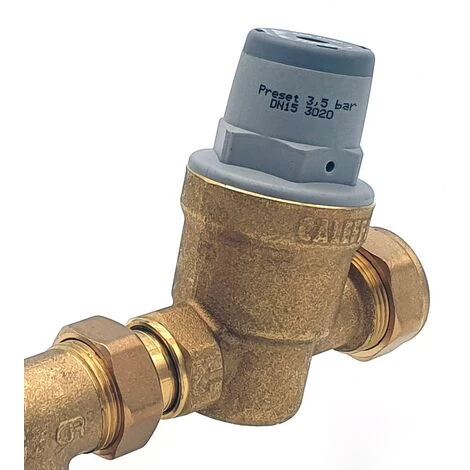

Caleffi 3.5 Bar Inclined pressure reducing valve for safety group Series 5331

Caleffi inclined pressure reducing valve, for safety group.

• Inclined pressure reducing valve for safety group
• For high temperature
• Dezincification resistant alloy body
• Max. upstream pressure: 16 bar
• Downstream setting pressure range: 1–5,5 bar
• Max. working temperature: 80°C
• Certified to EN 1567
• 3/4″ Connection
• Preset at 3.5 Bar.

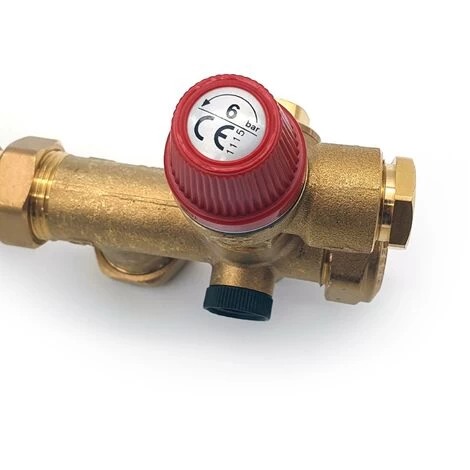

Altecnic – Caleffi 22mm Manifold 300015 and 312 6 Bar Pushfit SRV 312469

The Caleffi 3000015 is the manifold for the 535000CST and comes with a ½” 312 push fit pressure relief valve 312469.

• The Caleffi 312 SRV has a maximum temperature of 110°C and has a set pressure of 6 bar.
• Length: 110mm
• Height w/o SRV: 65mm
• Connections: 2 x 22mm, 1 x 15mm
• Pressure Gauge Connection: Yes
• Ratings: BS-864-2.
