- MaterialStainless steel
- ColourBlue
- ShapeCylindrical
- Fitting shape87° Double Socket Junction
- ManoMano ReferenceME6750397
- Product codeFITTINGS/A4SS/ELBOW-90-M/F-1/2BSP

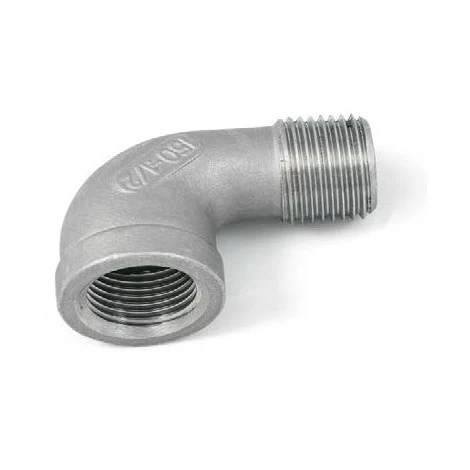

BSP 1/2 ” Male/Female Elbow Pipe Fitting – T316 (A4) Marine Grade Stainless Steel
Male thread :Â Taper Thread (BSPT / R Thread)
Female Thread: Parallel (BSPP / G Thread)
(Half Inch BSP)
British Standard Pipe Thread
Thread: according to EN 10226-1 (EX ISO 7-1)
Conical male thread, cylindric female thread
Taper 1:16 on diameter
Angle of threads 55°
Maximum operating pressure 150 lbs = 10,34 Bar PN 10
