- MaterialStainless steel
- ColourBlue
- Connection typeMale
- Fitting shapeNipple
- ManoMano ReferenceME7560379
- Product codeFITTINGS/A4SS/HEX-NIPPLE-3/4BSP

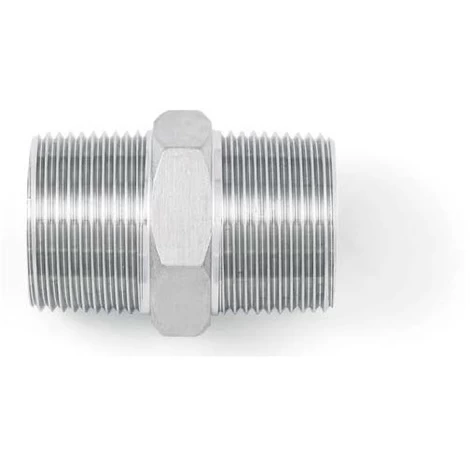

BSP 3/4″ Hexagon Nipple – A4 (T316) Marine Grade Stainless Steel – Taper Threads (BSPT / R Thread)

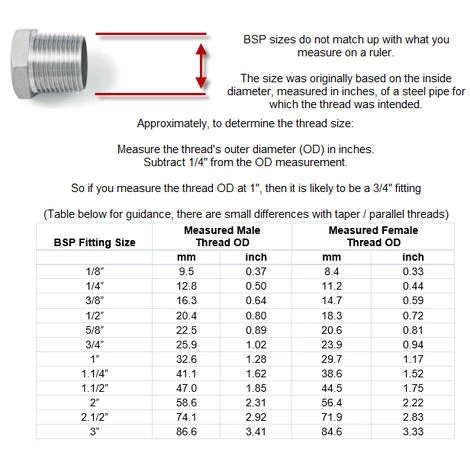

Three quarters of an Inch BSP Thread
Thread: according to EN 10226-1 (EX ISO 7-1)
Conical male thread
Taper 1:16 on diameter
Angle of threads 55°
Maximum operating pressure 150 lbs = 10,34 Bar PN 10
