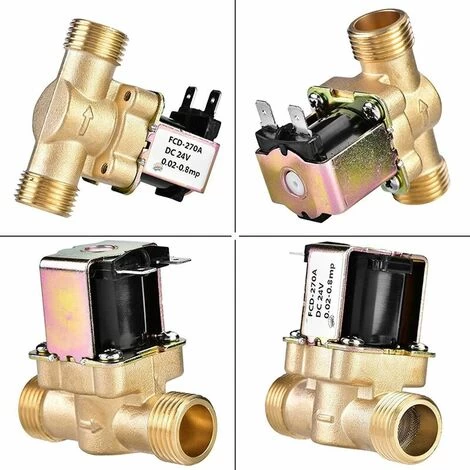

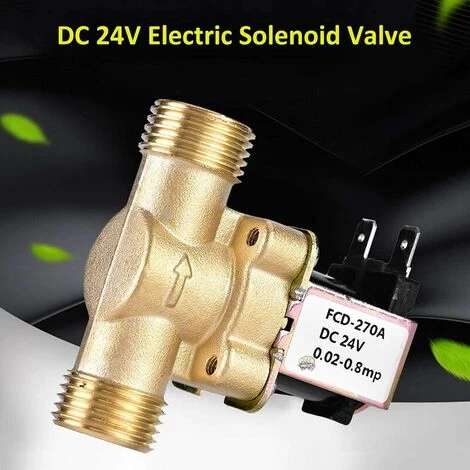

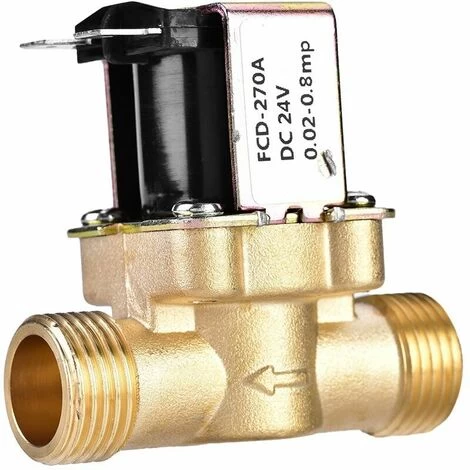

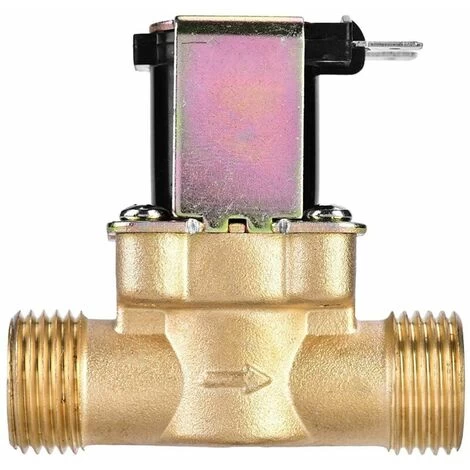

DC Water Valve, G1/2 DC 24V Normally Closed Brass Electric Magnetic Solenoid Valve For Water Control, Constant Current Constant Flow Hold And Water Monitoring Flow

Features] The solenoid valve does not consume power, with direct stability of water adjustment.

[High quality] The electric valve is a reliable, wear-resistant and precise brass casting structure.

[Function]The pressure regulating valve (constant flow valve) works the same as the water flow switch.

[Multiple Advantage] This water valve can not only maintain constant flow at constant current, but also prevent dry burning and flow monitoring.

[Easy Installation] The DC water valve is easy to install and maintain.

Features:

No power consumption, having direct stability of water adjustment.

The brass brass casting structure is reliable, wear-resistant and precise.

The pressure control valve (constant flow valve) works like the water flow switch.

This solenoid valve can not only maintain constant flow at constant current, but also prevent dry burning and monitor flow.

Easy to install and maintain.

Specification:

Valve body: Brass

Thread size: G1/2

Weight: 216g

Size: approx. 6 * 6.4cm/2.4 * 2.5in

Operating altitude: ≤2,500m/8,202ft

Operating temperature: 0 – 40

Operating humidity: >95% (at 25 )

Type: guide solenoid valve (one-way)

Rated voltage: 24 V DC

Rated current: 220mA

Insulation level: E

Fluid: Water

Fluid: Temperature: 0 – 55

Water pressure: 0.02 – 0.8 MPa

Water flow characteristics:

Water pressure (Mpa): 0.02, 0.1, 0.3, 0.8

Flow (L/min): > 5 > 11 >18 >32

Lifespan: > 100,000 times
