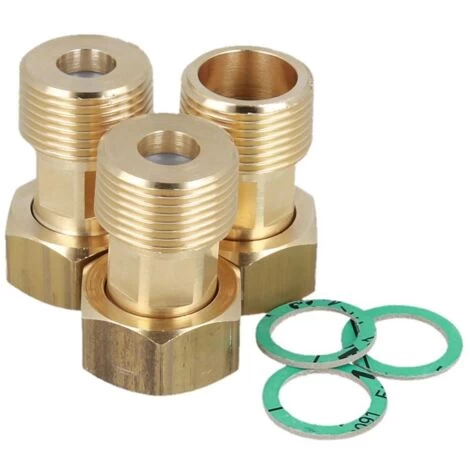

DN15 3/4 X 3/4 BSP Union Fittings Set For 3-way Water Mixing Valves Connection

The set of flare union is intended for use as a connection element for 3-way mixing valves. The set enables quick assembly and disassembly of the mixing valve from the installation for cleaning, maintenance or replacement. Additionally, unions with non-return valves located on the inlet connections prevent backflow in the event of a pressure drop on one of the connections.

Specifications:
– 2x union with non-return valves and 1x standard union with flat gaskets;
– Size: 3/4 x 3/4 Inch BSP;
– Material: brass;
– Max. working temperature: 90C;
– Max. working pressure: 10bar;
– Max. glycol concentration: 50%.
