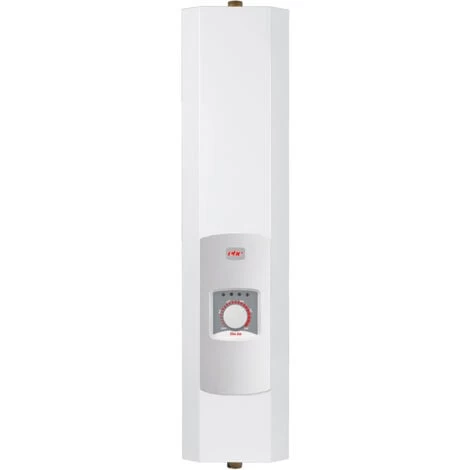

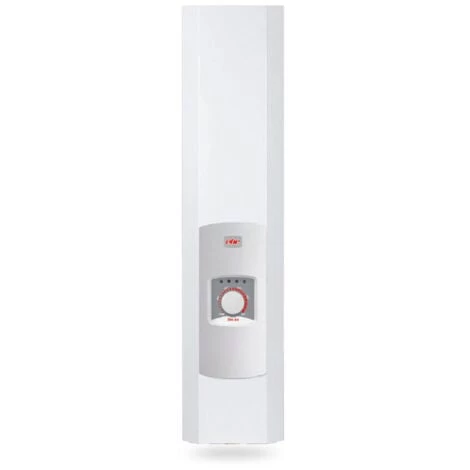

EHC Slim Jim 10kW Electric Flow Boiler

The SlimJim Electric Flow Boiler also has an easy-fit front cover for future maintenance purposes. It has a user-friendly front Control Panel incorporating an easy-to-use temperature control dial, heat and fault diagnostic indicators for the user and installer.

The unique Run-Dry Water Level Sensor incorporated within the SlimJim Boiler protects the heat exchanger from running dry due to system water loss. The Stainless Steel Heat Exchanger is fully insulated to minimise energy heatloss.

The Boiler temperature range can be set between 30 degrees and 80 degrees which also makes it a suitable choice for wet central heating radiators and underfloor heating systems.
Safety is of paramount importance and as such the Boiler incorporates a unique high current safety cut-out device to protect the Boiler against overheating.

The SlimJim can be supplied as a standalone unit or complete with a choice of Boiler Packs for Heating only or Heating and Domestic Hot Water Installations.

• 100% efficient
• Virtually silent in operation
• Suitable for central heating only or central heating & hot water
• Suitable for underfloor heating
• No Mandatory Maintenance required
• Space Saving Minimalistic Design
• 5 year Warranty*
• *2 years Parts & Labour Guarantee and then 3 years Parts only

• Option of Volt-Free or 230V Control Connections
• 6 Stage Heating
• Easy-Fit Connectors & Sensors
• In-Built Fault Finding Diagnostics
• High Current Thermal Cut-Out
• Water Level Sensor
• Insulated Stainless Steel Heat Exchanger
