G1/2 DN15 Automatic Drain Valve, Automatic Electronic Timed Drain Valve For Air Compressor Condensate Management(AC230V)

INSTRUCTIONS: This is a high quality, reliable condensate drain valve to maintain optimum operation of compressed air handling equipment

CAN BE PROGRAMMED: The timed electric drain valve can be programmed to discharge condensate at programmed interval to match conditions

VALVE OPEN TIME AND CLOSE TIME: The time the valve is open is adjustable from 0.5 to 10 seconds and closing time is from 0.5 to 45 minutes

AUTOMATICALLY OPERATES: it operates automatically and wastes less compressed air when discharging condensate

Widely used: G1/2 thread is widely used and can fit most air compressors

Product Description

Size: AC230V

Features:

This is a reliable and high quality condensate drain valve to maintain the optimal operation of compressed air treatment equipment.

The timed electric relief valve can be programmed to discharge condensate at regular intervals to match conditions. The valve opening time is adjustable from 0.5 to 10 seconds and the closing time is from 0.5 to 45 minutes.

It works automatically and wastes less time. compressed air when discharging condensate. G1/2 thread is widely used and can fit most air compressors.

Specifications:

Voltage: AC110V, AC230V (optional)

Valve Material: Brass

Valve Type: Separate

Valve Operation Modes: Direct Acting

Interval (OFF): 0.5-45min.

Discharge time: 0.5-10sec.

Thread: G1/2 (DN15)

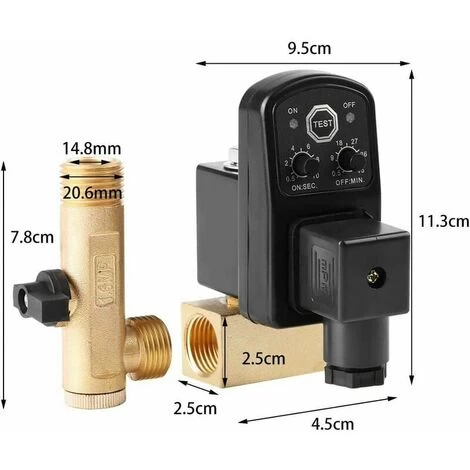

Outer diameter of the thread: approx. 20.6mm

Pressure: 0-1.6Mpa

Fluid: Air, water

Fluid temperature: -5℃~80℃

Flow direction: one way

Package includes:

1 x drain valve

Note: AC230V can also be connected to AC220V.
