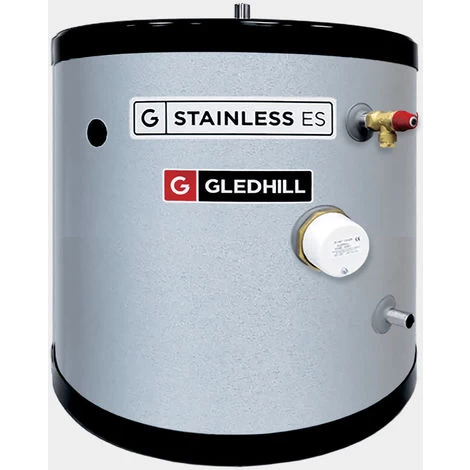

Gledhill 90 Litre Stainless ES Indirect Unvented Cylinder

Original price was: £346.00.Current price is: £95.99.

SKU: SESINPIN090 Categories: Buffer tanks, Electric heaters and radiators, Split air conditioner and heat pump accessories Tag: Buffer tanks

Safe Payments, Happy Customers
Experience the Best Quality
Control the delivery date and try to deliver it in the fastest time
Shop with Confidence, Pay Safely

Description
Reviews (0)

Features

Diameter
530.0 mm
Material
Polyurethane, Stainless steel
Colour
Grey
Fixing method
Anchoring
ManoMano Reference
ME8345133
Product code
SESINPIN090

Description

This 90 Litre Stainless ES Indirect Unvented Cylinder using advanced technology and ensure efficiency and reliability that makes Gledhill Stainless ES Indirect Cylinder one of the market pioneer and maintainable cylinder available in the market.
This Indirect cylinder heated by electric immersion and directly connected with from main and you don’t need to add any separate tank for it.
This Gledhill bunnings hot water cylinder range is manufactured from highly corrosion-resistant duplex hot water, enabling high flow rates for showers and baths, without the need for a boost pump and use 40mm insulation to reduce heat loss.
These unvented cylinders are suitable for all domestic and commercial applications.
Gledhill proven technologies and quality manufacturing at a competitive price.
The Stainless indirect is an unvented cylinder available in direct and indirect configurations.
Key Features:
Cylinder ErP Rating: B
Warranty : 25 Year
Capacity 90 litres
Maximum inlet pressure to Maximum inlet pressure to 12 Bar
Operating pressure (PRV setting) 3 Bar
Cylinder Overall Diameter: 530mm
Energy cut-out motorised valve (indirects only)
Cylinder Expansion vessel size: 12
kW rating of primary coil: 13.4
Cylinder Weight (empty): 17
Cylinder Weight (Full): 110
Cylinder Height: 832
Cylinder Heat Loss: 43
Cylinder Type: Unvented
Cylinder Heating Type: Indirect
Max working pressure 6 Bar
40mm insulation to reduce heat loss
Manufactured from highly corrosion-resistant duplex stainless steel.
WRAS approved.
Components supplied with Stainless ES Indirect Unvented Cylinder:
1 x 3KW immersion heater.
Expansion vessel.
Cold water inlet PRV combination valve/expansion relief.
Dual thermostat (Control thermostat and Energy cut-out thermostat).
Tundish.
Expansion vessel/mounting bracket.
Technical/user product literature.
Temperature and pressure relief valve.
3 Bar inlet control.
All cylinders are manufactured in accordance with the requirements of BS EN 12897. The tundish must be positioned so that it is visible to the occupant and is away from electrical devices.
In any situation where the volume of heated pipework (eg. secondary circulation pipes or manifold pipework for multiple units) exceeds 10 litres, then an additional expansion vessel must be fitted to accommodate the extra expansion volume.
The Environment: This product has been manufactured using many recyclable materials, including the approved HCFC/CFC free polyurethane foam insulation. At the end of its useful life, it should be disposed of at a Local Authority Recycling Centre, to maximise the products full environmental benefits.
