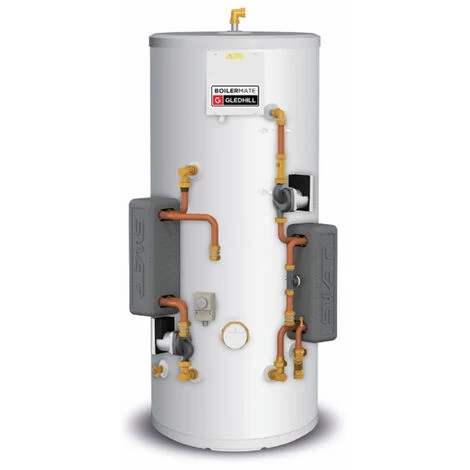

Gledhill BoilerMate SP�Thermal Store 150 Litre

The Gledhill Boilermate range is a thermal store that functions alongside central plant boilers to provide hot water. This product is known for its high efficiency levels and good performance, with great usability. Gledhill Thermal Store is clearly one of the best solutions available today. Designed for use with an open vented, heat only boiler, the BoilerMate Pre-Plumbed supplies instantaneous mains pressure hot water directly to the taps, whilst also
providing central heating. As the BoilerMate Thermal store is open vented, It is ideal for upgrading existing compatible heating systems. The controls are plumbed neatly inside the appliance, promising a clean finish within your airing cupboard, and you can site the header tank on top of the unit or remotely, for maximum flexibility.

Features:

• Mains pressure hot water giving power shower performance
• Used in conjunction with a sealed primary or system boiler
• Increased system efficiency, reducing running costs
• No annual maintenance or safety check requirement
• No G3 qualification requirement for installation
• Optional extras available to purchase separately.
• Suitable for use with a central plant system or a district heating system.
• Fitting template provided to speed up installation time.

Details:

• Unit Height: 1118mm
• Unit Diameter: 550mm
• ErP rating: C
• Heat loss: 47 Watts
• Capacity: 151 Litres
• Max. hot water flow rate: 12.6 litres/minute
• Guarantee: 5 Years

Maximum Dwelling Type:

• Bath: 1
• Bed: 1-2
• Shower Room: 1

Please Note:

• The height stated is to the top of the unit plus 550mm, which should allow for a 25mm thick shelf/board and room for servicing. This will need to be increased by 125mm if the automatic fill method is chosen.
• SP model heated from a heat source at 82.5°C at 16 l/m.
• Full thermal store volume reheated from 35°C to 75°C.
• Please refer to the installation manual for the minimum cupboard space requirement. This can be reduced by approximately 70mm if the insulation is removed from the plate heat exchangers.
