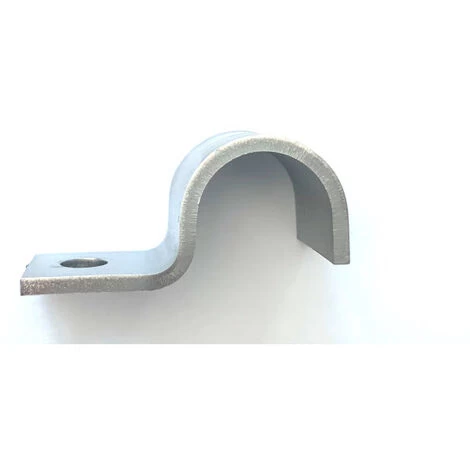

Half Saddle / P Clamp – 10 MM – T316 (A4) Marine Grade Stainless Steel

Half Saddle / P Clamp – 10 MM – T316 (A4) Marine Grade Stainless Steel

10 MM is the outside diameter of the cable or pipe being held.

Also called fixing clips and can be used for a wide variety of purposes. Generally to fix pipes, wires and cables to structures quickly and easily.

Manufactured in the UK by Graphskill Ltd

T316 Stainless Steel is suitable for anywhere you would use T304 BUT has the added advantage of being suitable for marine solutions. The molybdenum increases the corrosion resistance to withstand attack from many industrial chemicals and solvents and of course chlorides

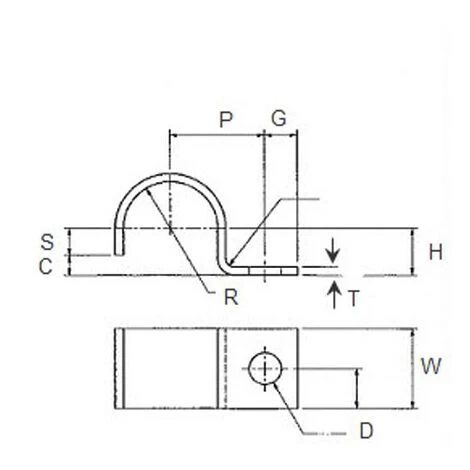

All Dimensions in mm (millimeters) with tolerances of +/- 1 mm

Material Width (W) – 12 mm

Material Thickness (T) – 2 mm

Inside Radius (R) – 5 mm

Hole Center to Center of Clamp (P) – 16 mm

Hole Center to Edge (G) – 6 mm

Straight Edge Of Clamp (H) – 5 mm

Straight leg of un-bolted Leg (S) – 3 mm

Gap (C) – 2 mm

Hole Diameter (D) – 6 mm
