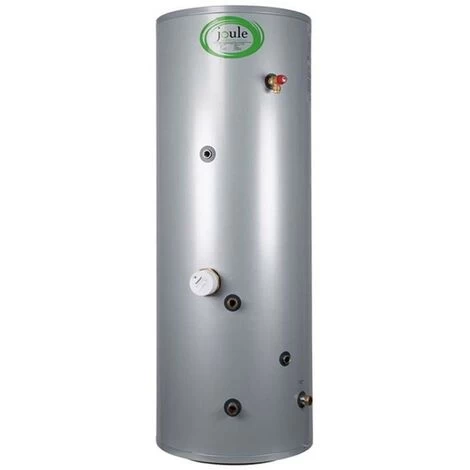

Joule Cyclone Slimline Stainless Steel Indirect Unvented Cylinder 100 Litre

Joule Slimline Stainless Steel Indirect Unvented Cylinder has created only to provide you with unbeatable facilities.  It is manufactured using advanced technology and ensures efficiency and reliability that makes Cylinder one of the market pioneer and maintainable cylinders available in the market. This cylinder keeps heat loss to a minimum and is extremely economical to run. The Joule range of un-vented cylinders are the UK’s fastest growing cylinder brand. Built on quality and performance, with one of the widest ranges of models available you can be sure there is a model to suit. There is no cheap plastic used on the outer casing. In these cylinders the best materials are used, duplex stainless steel body, 316L grade stainless fittings and coils. This stainless steel cylinder is really a magical thing that beautifies your place to another level.

Descriptive Specification:

• The unit is to be floor standing Cyclone pre-insulated pressurised Hot Water Cylinder.
• The cylinder is to be manufactured from Duplex LDX 2101.
• The cylinder must be tested to 10 bar with a maximum operating pressure of 5 bar.
• The cylinder should have a standing loss of no more than 65 W.

Technical Features:

• Cylinder Height: 950mm
• Cylinder Diameter: 475mm
• Cylinder Colour: Grey
• Capacity: 100 L
• Hot Water Volume: 84 Litres
• Cylinder Material: Stainless Steel Duplex LDX 2101
• Thermal Insulation: Polyurethane foam CFC-Free and HCFC Free
• Cylinder Type: Unvented
• Heating Type: Indirect
• Coil Material: Stainless Steel Tube AISI 316L
• Max. Operating Pressure (bar): 5
• Test Pressure (Bar): 10
• Max. Working Temperature (c): 90
• Weight (empty) kg: 25
• Heat Up Time Coil: 13 Mins
• Weight (full) kg: 109
• Installation: Floor Standing
• Heating Elements: 1. No Incoloy Immersion
• ErP Rating: C
• Standing Loss (W/24hrs): 56 Watts
• Casing: Painted Galvanised Carbon Steel DX51D
• Unvented Kit Components: Expansion Vessel, Inlet Control Group, Zone Valve, Cylinder Thermostat, Tundish
• 25 years guarantee from manufacturer

Cylinder Features:

• Robotically welded
• Single high recovery coil
• Smooth tube coil construction for durability and performance
• Compression connections fitted as standard
• Bevelled stat pocket for better fitting
• Metallic grey wipe clean rigid case for premium appearance
• Pre plugged secondary tapping for ease of installation
• All connections clearly labelled
• Butt welded process used throughout
• Branded quality components
