Pipe Saddle Clamp – Guide – 24 Mm ID, 23 Mm IH, 25 X 3 Mm T304 Stainless Steel (A2)

Pipe Saddle Clamp – Guide – 24 mm ID, 23 mm IH, 25 x 3 mm T304 Stainless Steel (A2)

Ideally suited for use with Unistrut / Oglaend steel channel trunking

Use where it is undesirable to restrict longitudinal movement (Perhaps to allow vibration, or thermal expansion)

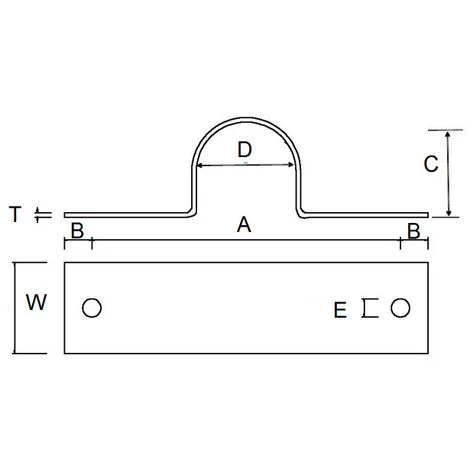

All Measurements in mm

Inside Diameter (D) : 24

Inside Height (C) : 23

Hole Centers (A) : 66

Material : T304 Stainless Steel (A2)

Pipe Nominal Bore : 15

Pipe OD : 21.3

Product Type : Saddle Clamp – Guide

Material Thickness (T) : 3

Material Width (W) : 25

Hole Center to Edge (B) : 12

Hole Diameter (E) : 8

T304 Stainless steel provides a corrosion and oxidation resistance, however it can tarnish. Used extensively in every day life, but if you need a higher level of corrosion resistance such as in a marine environment look for T316

Our manufacturing tolerances are + / – 1 mm)
