Plus Electric Water Heater Instant With Backlit LED Display, 5.5kW Tankless Hand Wash For Basins Sinks, Over/Under Sink Installation Thermomate ELEX5.5

Washing hands or face with cold water is annoying, while waiting hot water from remote domestic heating system is also frustrating, so thermomate ELEX5.5 Plus is a perfect solution to address this concern for you. Just tap it into the cold mains and hard wire it into the electricity mains, hot water will come out from this water heater instantly and endlessly. Featuring compact and neat design, it can be perfectly installed over or under a sink, ideal for a wide range of locations: kitchen, bathroom, wet bars, strip malls, doctor’s office, church, community, school, etc..

Features

• Thermomate ELEX5.5 Plus electric water heater is a true Point of Use Model which delivers 3.0 L/[email protected] 25℃ temperature rising of hot water for where you need it.
• The electric water heater can be fed from cold mains, solar heating system or central heating tank. Please make sure your water supply system reaches to 0.5 bar.
• ELEX5.5 Plus comes with a 80cm power cable, it needs to be directly hard wired into 230V electricity mains.
• A 30 amp double pole circuit breaker is a must for safety installation of electric instant water heater.

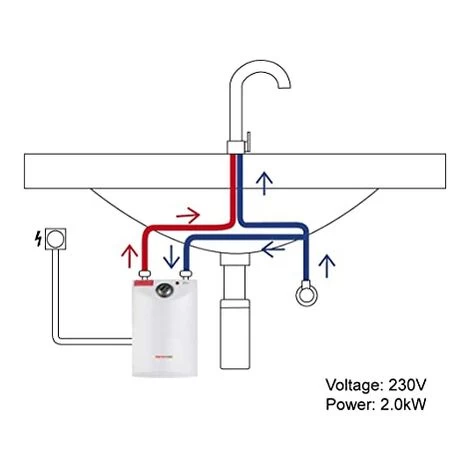

• Two applications optional – Functional for both over sink and under sink installation, display will reverse automatically. Act as primary heater, with water being injected from cold mains directly; Act as booster heater, with hot water being injected from a storage tank. It is free to connect to a mixer tap.
• Please make sure the hot water circuit is free of air pockets before switching “ON” the power at the main circuit breaker.
• The device must be filled with water before connection to the power supply!
• To function properly, plumbing fittings should not be over tightening. Please plumb fittings by hand till fixed and then use two adjustable wrenches to screw them until you feel it tighten, then stop.

Package includes:

• 1 x Thermomate 5.5kW electric water heater
• 1 x Installation accessory kit (2 screws, 2 anchors, 2 seals, 1 strainers)
• 1 x Instruction manual

• It must be hardwired by a Qualified Electrician and it will not plug in.

Concealed Automatic Rotation LED Display for Thermomate ELEX5.5 Plus

• Thermomate ELEX5.5 Plus features a new upgrade concealed automatic rotate digital temperature control display, when the electric handwash is working, a real-time LED display of the current water temperature, you can easily get hot water at your desired temperature. Selectable temperature ranges from 35 to 55℃ via touch control.
• Recommended use of water temperature: Wash hands at 40 ℃, Wash dishes at 45 ℃, Wash your face at 35 ℃, Wash vegetables at 30 ℃.

• Power rating: 5.5 kW
• Temperature range: 35-55℃
• Flow rate(△t=25℃): 3 L/min
• Switch on water pressure: 0.5 bar
• Max water pressure: 8 bar
• Power cord size: 4 mm²
• Nominal current: 23-25 AMP
• Circuit breaker Required: 30 AMP Double Pole ( NOT included )

Multiple Applications for Thermomate ELEX5.5 Electric Instant Water Heater

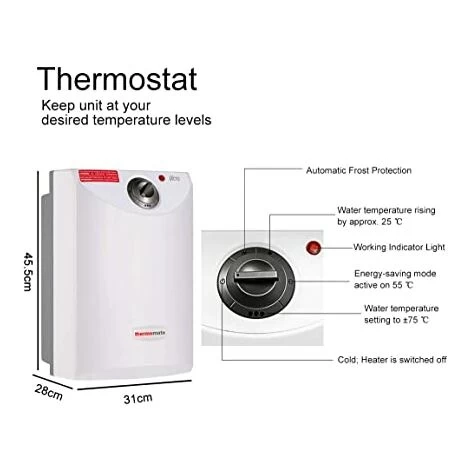

	UT10	ELEX5.5 Plus
Power	2.0kW	5.5kW
Nominal current	13 AMP	23-25 AMP
Required Breaker	1 x 2-POLE 20AMP	1 x 2-POLE 30AMP
Temp. Range	7-75℃	35-55℃
Switch on flow rate	/	1.5 L/min
Flow rate(△t=25℃)	/	3.0 L/min
Capacity	10L	/
Power code size	1.5mm²	4 mm²
Size	45.5 x 31 x 28cm	19 x 16.5 x 9.5 cm
Weight	6.5 kg	1.4 kg
