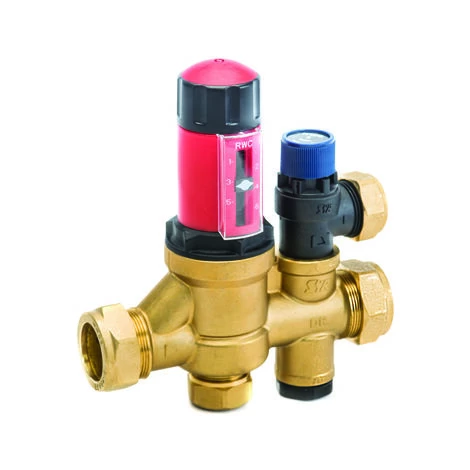

Reliance Water Controls 28mm High Flow One-piece Adjustable Inlet Control Valve CWIC 352310

Reliance Water Controls 28mm high flow one-piece adjustable inlet control valve CWIC 352310

A one-piece inlet control suitable for all types of unvented water
system in larger domestic and commercial installations where a
high flow rate is required to satisfy high demands. It incorporates
a pressure reducing valve, single check valve, pressure relief
valve and dedicated connection for an expansion vessel and
balanced cold water connections.

Features and Benefits
• High flow rates up to 77 L/min
• Dedicated connection for an expansion vessel
• ‘Droptight’ pressure reducing valve
• Includes single check valve
• High discharge capacity
• Integral strainer
• One-piece body minimises leak potential

Specifications
Maximum inlet pressure: 25.0 bar
Maximum temperature: 70°C
Pressure reduction ratio: 10:1
Inlet connection size: 28mm

standards and Approvals
• WRAS Approved
• BSEN 1567
• BSEN 1491
• EN 13959
