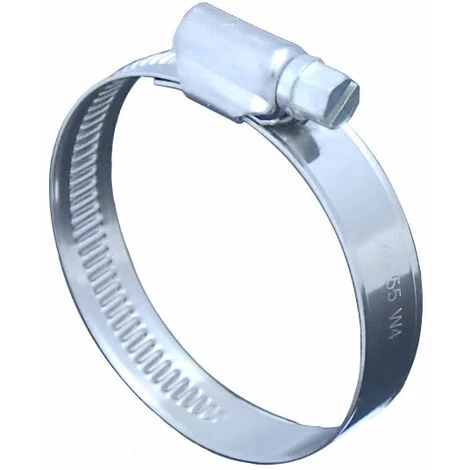

Stainless Steel Jubilee Type Clip – Worm Gear – 80-100mm

Jubilee type Clip – 80-100 mm T316 Stainless steel hose clamp with strong worm gear drive

Stainless Steel screws, submitted to a further galvanizing treatment (zinc plated CR+3) in order to avoid “Seizing”

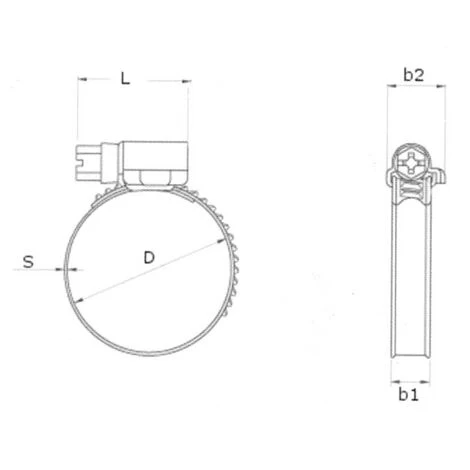

D (min-max) = 80 – 100 mm
b1 = 12 mm
b2 (max) = 31 mm
L = 31 mm
S = 1 mm

A4 grade stainless steel is also known as type 316 S31.This has a greater corrosion resistance than A2 in certain environments, and is often used for Marine applications especially when coming into  direct contact with salt water.

Please note that the dimensions for D are accurate, but b1, b2, L and S can vary between batches (for example band width could be 9 or 12 mm). If the actual dimensions are critical please do ask us to check first
