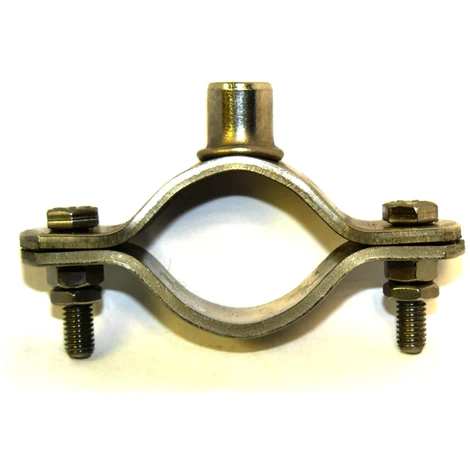

T304 Stainless Steel Munsen Type Bossed Pipe Pipe For 50 NB Pipe – M10 Boss

T304 Stainless Steel Munsen type bossed pipe Pipe for 50 NB Pipe – M10 Boss

Ideal for use with Unistrut and Oglaend metal framing system channels

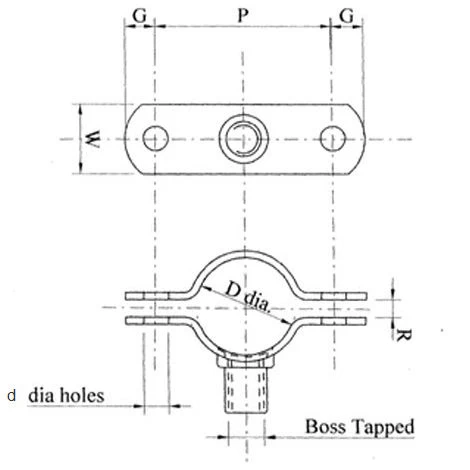

For Pipe Outside Diameter = 60.3 mm
hole diameter ‘d’= 7mm
hole center to edge ‘G’= 10mm
Material width ‘W’= 20mm
material thickness ‘T’= 3 mm
Gap ‘R’= 4mm
NB= 50 mm
D= 61mm
P= 87mm
Safe Working load = 100 kgf
Proof load = 150 kgf
Supplied with 2 – M6*25 stainless steel sets scews, full nuts and lock nuts

T304 Stainless steel provides a corrosion and oxidation resistance, however it can tarnish. Used extensively in every day life, but if you need a higher level of corrosion resistance such as in a marine environment look for T316
