T316 Stainless Steel Munsen Type Bossed Pipe Clip M10 Boss – Pipe OD 16-19 Mm

T316 Stainless Steel Munsen type bossed pipe clip M10 Boss – Pipe OD 16-19 mm

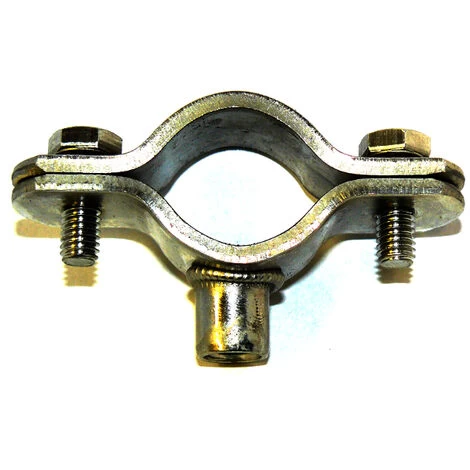

Sometimes called Munsen rings, bossed pipe clamps are very similar to a two bolt pipe clip, but with a threaded boss attached. The threaded boss allows the pipe clamp to be fixed to a base plate via a length of studding.

The added advantage is the matrix – connect multiple clamps in different orientations allows for great flexibility. Developed to accommodate the many different types of pipe support designs which have proven expensive to adopt in stainless steel. The unique design enables a multitude of design options

These clamps can be used to clamp, guide or hang pipes in position with a minimum of basic components.

Supplied with one half internally thread hole and a set screw with shake-proof washer, perfect for ease of assembly especially in restricted spaces

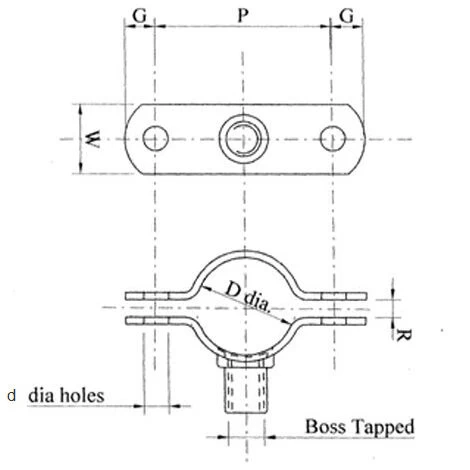

Size Pipe mm: 16-19
D mm: 19
P mm: 46

W x T = 25 * 3  when with the M10 Boss

G = Hole center to edge of plate = 10 mm

R = Distance between half = 4 mm

Includes 2 off M16*16 mm setscrew and shake-proof washers



T316 (A4) Marine grade stainless steel has a greater corrosion resistance than A2 in certain environments. It is often used for Marine applications especially when coming into direct contact with salt water.

Our manufacturing tolerances are + / – 1 mm
