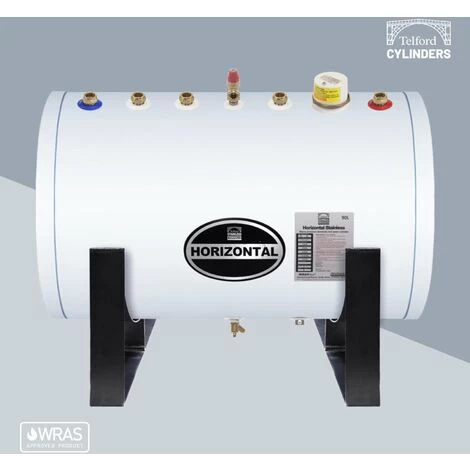

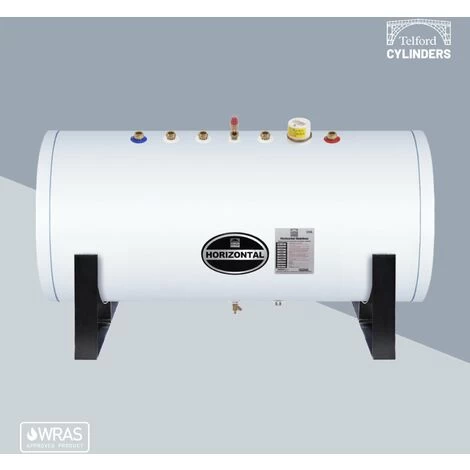

Telford Hurricane Unvented Horizontal Indirect Cylinder 90L

Telford Hurricane 90L Horizontal Indirect series offers installers a competitively priced high quality unvented cylinder that delivers mains pressure hot water with high flow rates to showers and baths without the need of a boost pump. Manufactured from corrosion-resistant duplex 2304 stainless-steel with recyclable CFC/HCFC free polyurethane foam insulation, the horizontal indirect series is ideal for use in height restricted areas where a Gas/Oil boiler is being used as the primary heat source.

Key Features:

• High flow rates and fast recovery times
• Horizontal design for height restricted areas
• For use with Gas/Oil boilers
• Duplex stainless steel provides superior corrosion resistance
• 316L grade stainless steel 22mm compression fittings and coils
• Includes 3kw boost immersion heater
• 22mm secondary return included (200L and above)
• Adjustable temperature control
• Resettable safety cut-out
• Factory fitted temperature and pressure relief value
• Expansion vessel & fixing bracket included
• G3 Components included (See below)
• 22mm compression fittings included
• WRAS approved
• Fully ERP compliant
• Titanium immersion heater versions also available
• Lifetime cylinder warranty
• 2-Year components warranty

Technical

• Manufacturer: Telford Cylinders
• Range: Hurricane
• Product Code: HURI090H
• Cylinder Type: Unvented
• Configuration: Horizontal Indirect
• Nominal Capacity (L): 90
• Width (mm): 750
• Cylinder Diameter (mm): 510
• Overall Height in Cradle (mm): 610
• Weight (kg): 35
• Weight Full (kg): 125
• No. Immersion Heaters: 1
• Expansion Vessel (L): 8
• Thermostat Temperature Setting ( ^oC): 60^oC
• Heat-up Time (Mins): 26
• Recovery Time after 75% draw-off with boiler (Mins): 18
• Heat Loss (kWh/24): 1.37
• Energy Efficiency (%): 57
• ErP Rating: C

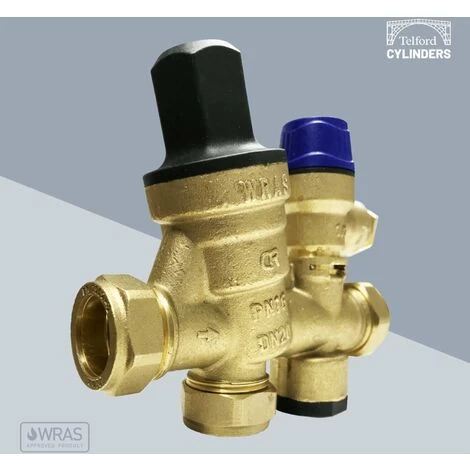

• Pressure Regulator (bar): 3.0
