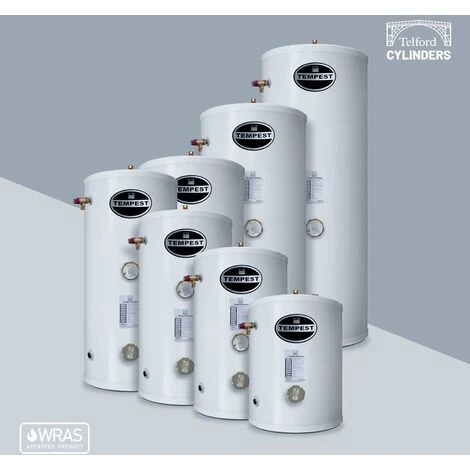

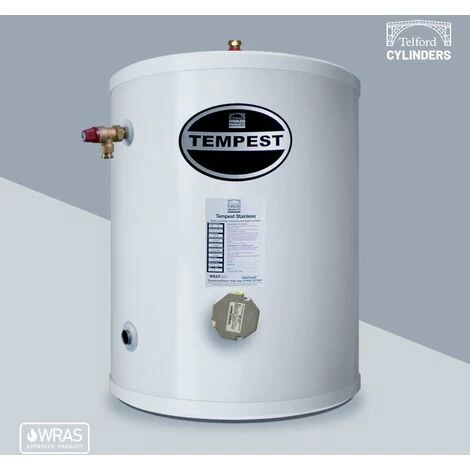

Telford Tempest Unvented Direct Cylinder 90L

Telford Tempest is a high quality unvented cylinder range that delivers mains pressure hot water with high flow rates to showers and baths without the need of a boost pump. Manufactured from corrosion-resistant duplex 2304 stainless-steel with recyclable CFC/HCFC free polyurethane foam insulation, Tempest cylinders are ideal for residential, rental and commercial properties.

Key Features:

• High flow rates and fast recovery times
• 2 immersions heaters included*
• 22mm secondary return (200L models and above)
• Adjustable temperature control
• Resettable safety cut-out

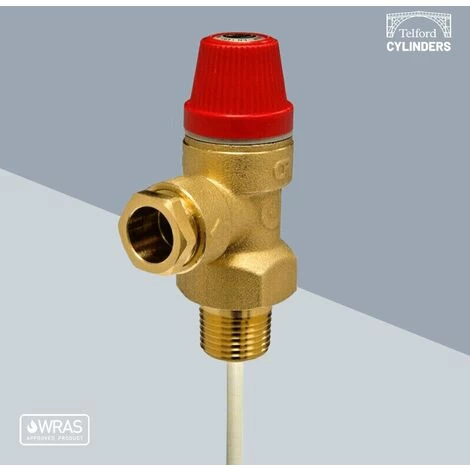

• Factory fitted temperature and pressure relief valve
• Expansion vessel and fixing bracket included
• G3 components included (see below)
• 22mm compression fittings included
• WRAS Approved
• ERP Compliant
• Titanium immersions also available
• Liftetime cylinder warranty
• 2-Year components warranty

Technical

• Manufacturer: Telford Cylinders
• Cylinder Type: Unvented
• Configuration: Direct
• Nominal Capacity (L): 90
• Height (mm): 750
• Diameter (mm): 510
• Weight (kg): 35
• Weight Full (kg): 125
• No. Immersion Heaters: 1 (90L Model Only)
• Thermostat Temperature Setting ( ^oC): 60^oC
• Heat-up Time (Mins): 52
• Recovery Time after 75% draw-off with boiler (Mins): 27
• Heat Loss (kWh/24): 1.37
• Energy Efficiency (%): 37
• Annual Consumption (kWh/annum): 2605
• ErP Rating: C
• Load Profile: L
• Pressure Regulator (bar): 3.0
