- Length90.0 cm
- MaterialCarbon, Steel
- ShapePoint
- Width48.0 cm
- Height90.0 cm
- ManoMano ReferenceME51510363
- Warranty8 years
- Product codeWWQ24090048 KRGRE8P

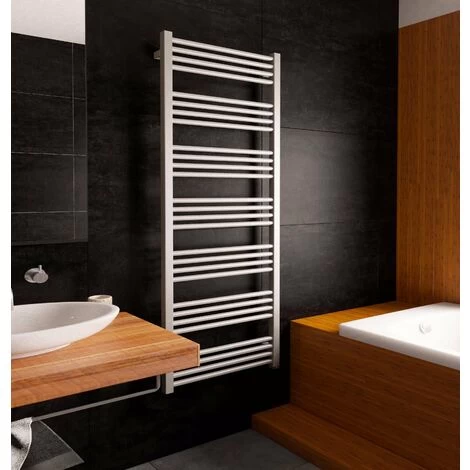

Terma Fiona Electric Towel Rail ONE
The Fiona is an all-electric towel rail that is enriched by the built-in One electric heating element. The heating element hidden in the collector blends invisibly with its shape €“ without the need for an additional, external electric device. One is a practical and easy to use heating element which does not dominate the radiator with its form.
Fiona is a bathroom towel rail distinguished by simplicity and regular arrangement of profiles. It reconciles contemporary design with the classical idea of beauty. Â
Key points
- Simple classic design
- Easy hanging of the fabric to dry
- Functional built-in One electric heating element
Features and benefits of the Fiona radiator
- Highest quality low carbon steel ensuring product longevity
- Oxsilan ® passive rust protection process
- High quality double layer powder coating
- 8 years warranty for water tightness and paint coating
- Increased resistance to chemicals, temperature variations and mechanical damage
- Easy cleaning and maintenance
- Easy installation (solid wall fixing kit included)
- Made to EN 10305-5
Features and benefits of the One heating element
- Two operation modes: heating and drying
- TIMER function (automatically switches off the device after 2 hours)
- Ultra-low power consumption in standby mode (< 0,5 W)
- Device settings are remembered also after electricity cut-off, which makes it possible to work with external timers or intelligent building systems
- Option of adding extra functions by means of the built-in infrared link
- Protection against operation in dry conditions and double protection against radiator overheating
- Frost protection (ANTIFREEZE)
Â
Don’t know what size to get? Here’s our guide to Calculate Radiator Size.
Â
[starttab] [Title]Fiona 400w 900x480x90 T3630
[description]Technical Specification
|
Height (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
900 |
|
Width (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
480 |
|
Depth (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
90 |
|
Colour: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
Sparkling gravel |
|
Heat output (W): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
400 |
|
Heat output (BTUs): |
1365 |
|
Connection type: Â Â Â Â Â Â Â Â Â Â Â Â |
E8 |
|
Connection spacing (mm): |
N/A |
|
Wall to centre of inlet (mm): Â Â Â Â Â Â Â |
N/A |
|
Operating pressure (MPa): Â Â Â Â Â Â Â Â Â Â |
1 |
|
Maximum operating temperature ( °C): |
60 |
|
Material: |
Carbon steel |
|
Surface finish: |
Powder coating |
|
Weight (kg): |
10,95 |
Technical Drawing
Download  here
[endtab] [starttab] [Title]Fiona 400w 1140x480x90 T3631
[description]Technical Specification
|
Height (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
1140 |
|
Width (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
480 |
|
Depth (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
90 |
|
Colour: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
Sparkling gravel |
|
Heat output (W): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
400 |
|
Heat output (BTUs): |
1365 |
|
Connection type: Â Â Â Â Â Â Â Â Â Â Â Â |
E8 |
|
Connection spacing (mm): |
N/A |
|
Wall to centre of inlet (mm): Â Â Â Â Â Â Â |
N/A |
|
Operating pressure (MPa): Â Â Â Â Â Â Â Â Â Â |
1 |
|
Maximum operating temperature ( °C): |
60 |
|
Material: |
Carbon steel |
|
Surface finish: |
Powder coating |
|
Weight (kg): |
13,73 |
Technical Drawing
Download here
[endtab] [starttab] [Title]Fiona 600w 1380x480x90 T3632
[description]Technical Specification
|
Height (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
1380 |
|
Width (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
480 |
|
Depth (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
90 |
|
Colour: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
Sparkling gravel |
|
Heat output (W): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
600 |
|
Heat output (BTUs): |
2047 |
|
Connection type: Â Â Â Â Â Â Â Â Â Â Â Â |
E8 |
|
Connection spacing (mm): |
N/A |
|
Wall to centre of inlet (mm): Â Â Â Â Â Â Â |
N/A |
|
Operating pressure (MPa): Â Â Â Â Â Â Â Â Â Â |
1 |
|
Maximum operating temperature ( °C): |
60 |
|
Material: |
Carbon steel |
|
Surface finish: |
Powder coating |
|
Weight (kg): |
16,50 |
Technical Drawing
Download here
[starttab] [Title]Fiona 600w 1620x480x90 T3633
[description]Technical Specification
|
Height (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
1620 |
|
Width (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
480 |
|
Depth (mm): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
90 |
|
Colour: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
Sparkling gravel |
|
Heat output (W): Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
600 |
|
Heat output (BTUs): |
2047 |
|
Connection type: Â Â Â Â Â Â Â Â Â Â Â Â |
E8 |
|
Connection spacing (mm): |
N/A |
|
Wall to centre of inlet (mm): Â Â Â Â Â Â Â |
N/A |
|
Operating pressure (MPa): Â Â Â Â Â Â Â Â Â Â |
1 |
|
Maximum operating temperature ( °C): |
60 |
|
Material: |
Carbon steel |
|
Surface finish: |
Powder coating |
|
Weight (kg): |
19,26 |
Technical Drawing
Download  here
[endtab]
