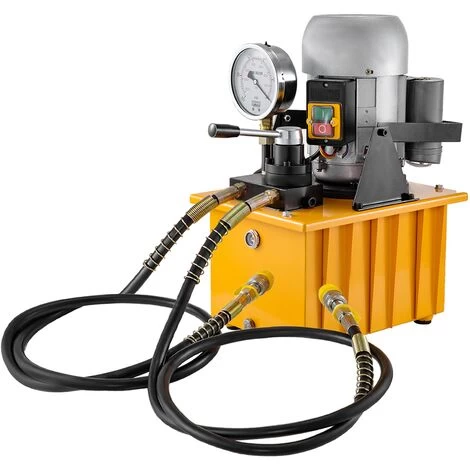

VEVOR Electric Driven Hydraulic Pump 750W Manual Valve 10152 PSI, Electric Driven Hydraulic Pump Double Acting High Rotating Speed 8L Oil Storing

Electric Driven Hydraulic Pump 10000 PSI Double Acting

This double-acting
electric oil pump is composed of a single-phase asynchronous motor,
high-pressure hydraulic cylinder, and fuel tank. It has the advantages
of small size, high pressure, lightweight, simple structure and easy to
use. This pump reduces manual work and maximizes work efficiency. The
oil pump’s regular working temperature is between 10~50.

• Efficient Motor
• Large Capacity Tank
• Accurate Pressure Gauge
• Effective Oil Volume

Features & Details:

• 【EFFICIENT
  MOTOR】- Equipped with a single-phase asynchronous motor, 750W, with
  aluminum shell, this electric hydraulic pump is energy efficient,
  powerful, and durable. Hydraulic pump working pressure: 2Mpa to 70Mpa.
  Rotate speed:1400r/min. Flow rate: 0.9L/min – 5L/min.
• 【LARGE
  CAPACITY TANK】- With a large fuel tank capacity, 8L, the hydraulic
  power pack is efficient. A visible window for monitoring the inside. The
  pump uses 16th hydraulic oil. It has the advantages of compact size,
  lightweight, simple structure, and ease of use.
• 【ACCURATE
  PRESSURE GAUGE】- This air hydraulic pump has a precise pressure gauge,
  resistant to shock, helping to observe the pressure when the hydraulic
  pump is working at any time. From 2Mpa to 70Mpa, you can try slowly and
  choose the right working pressure you need.
• 【EFFECTIVE
  OIL VOLUME】- Manage this double-acting hydraulic gear pump by a lever
  which has a rubber cap in one end for a comfortable grasp and use.
  Control two equipment at the same time, pretty efficient. The oil pipe
  coupling is fitted with a PT3/8” thread.
• 【VARIOUS
  APPLICATION】- The manual hydraulic pump can be used for a variety of
  hydraulic equipment, working on several assignments such as lifting,
  pressing, bending, straightening, cutting, assembly and disassembly.
  Reduce manual work and maximize work efficiency.

Specifications

• Model: ZCB-65C
• Input voltage: 220V 50HZ
• Function: Double-acting, manual valve
• Working pressure: 290PSI – 10152PSI(2Mpa-70Mpa)
• Flow rate: 0.9L/min – 5L/min
• Oil capacity: 8L
• Motor power: 750W
• Motor speed: 1400r/Min
• Machine size: 7.87″x12.6″x17″(200x320x430mm)
• Weight: 57lbs(26kg)

Package Content

• 1 X Electric Driven Hydraulic Pump
• 2 X Oil Hoses

High-power Motor

This
hydraulic pump unit uses 750W power pure copper motor with aluminum
shell, saving power and effort, freeing your hands. 1400 revolutions per
minute, fast speed and high work efficiency.

Large Fuel Tank

This
electric hydraulic pump tank can store 8L of oil, the 16th hydraulic
oil. Large capacity extends working hours. Observe the hydraulic oil at
any time through a visible window to inlet the oil in time.

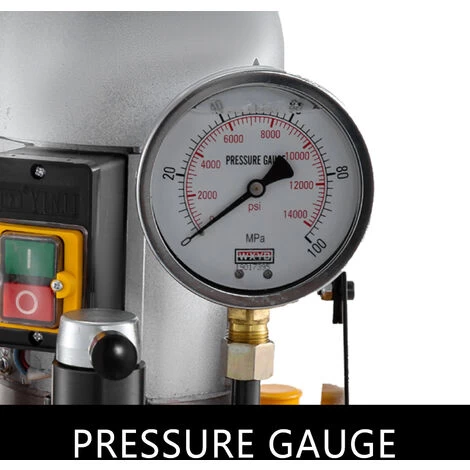

Pressure Gauge

A
precise pressure gauge is accurate. It is a 10000 psi hydraulic pump
which is higher than most products at the market. High pressure is for
driving piston and low pressure is for piston reset.

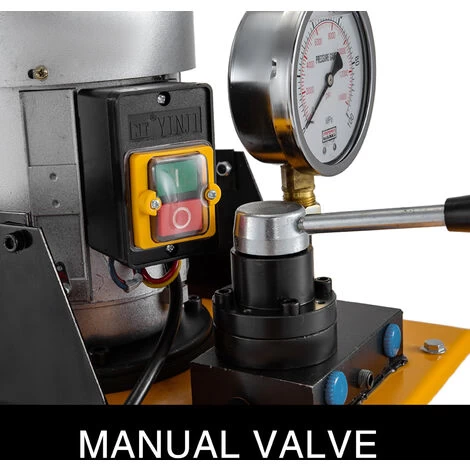

Manual Valve

Operate
the electric hydraulic valve manually to control the input and output
of the oil. The valve up, giving pressure; The valve down, relieving
pressure. Sensitive on/off switch.

Double Acting

Double
acting design is more convenient and quick, more applicable. Fitted
with PT3/8” thread, high-pressure oil pipe is high-quality and durable.
Dust caps protect the oil pipe from dirt.

Wide Application

If
the pump is equipped with other hydraulic tools, it can work on several
assignments such as lifting, pressing, bending, straightening, cutting,
assembly and disassembly.
