- Length1500.0 mm
- ShapePoint
- ManoMano ReferenceME61242558
- Warranty1 year
- Product codeYLB6GJTTZ00000001V0

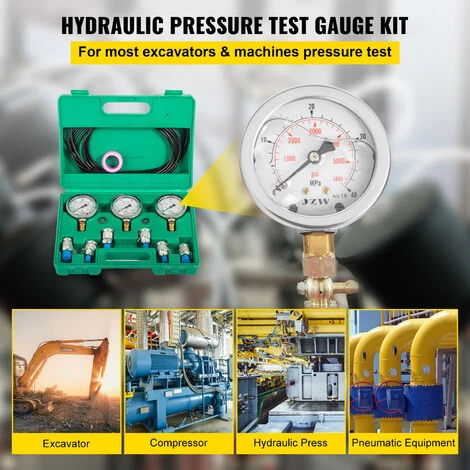

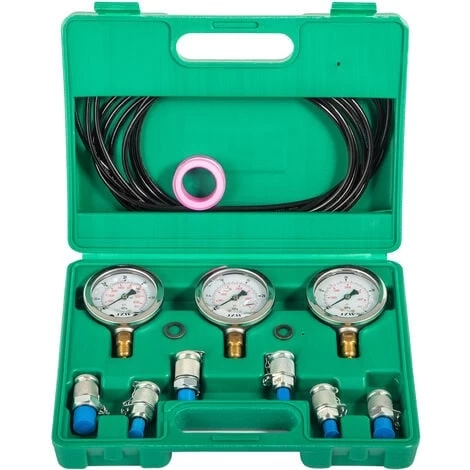

Our
straight hydraulic pressure testing set includes three pressure gauges,
and three connect tubes, six couplings. It provides you reliable
pressure measuring results. It features a compact structure, high
pressure, and impact resistance.
- Accurate Pressure Gauge
- Interchangeable Test Couplings
- Durable Materials
- Portable Case & 5.25′ Test Hose
Features & Details
- Accurate
Pressure Gauge: The hydraulic gauge kit has three pressure gauges of
different ranges: 0-3500PSI/25MPa, 0-5800PSI/40MPa, 0-8600PSI/60MPa.
With two units and precise graduations, the meters are accurate in
measuring pressure. - Interchangeable

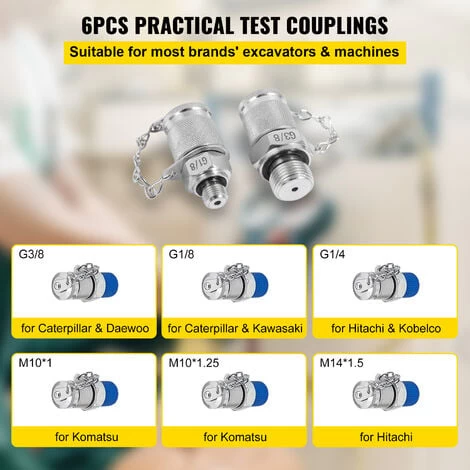

Test Couplings: Six interchangeable test couplings are included in this
excavator hydraulic pressure test kit, with the sizes of G1/4, G1/8,
G3/8, M14 x 1.5, M10 x 1, and M10 x 1.25, which are suitable for many
kinds of standard excavators. - Durable
Materials: This hydraulic gauge test kit contains corrosion resistance
gauges and carbon steel couplings with high strength. The working oil
filled in the meters effectively avoids vibration and pulsation. - Portable
Case & 5.25′ Test Hose: All parts of the hydraulic pressure test
gauge are neatly stored and tightly placed in a thickened plastic
toolbox. The compact design makes it save storage space and easy to
carry. In addition, three test hoses help extend the pressure test gauge
to the inside of the machine for easy reading. - Wide
Application: This excavator hydraulic pressure gauge comfortably fits
for pumps, compressors, hydraulic presses, pneumatic equipment, and
motors of various excavators. It is widely applied in construction,
shipping, etc.
Specifications
- Materials: Stainless Steel, Red Copper, Carbon Steel
- Pressure Gauge 1: φ60 mm-3500PSI/25MPa
- Pressure Gauge 2: φ60 mm-5800PSI/40MPa
- Pressure Gauge 3: φ60 mm-8600PSI/60MPa
- Test coupling 1:G1/4
- Test coupling 2:G1/8
- Test coupling 3:M14x1.5
- Test coupling 4:M10x1
- Test coupling 5:M10x1.25
- Operating Temperature:-40℃~+100℃
- Hose Length: 1.6 M /63″
- Gauge Screw Size: J4/1
Package Content
- 3 x Pressure Gauges
- 6 x Couplings
- 3 x Connect HosesÂ
- 1 x Storage Case

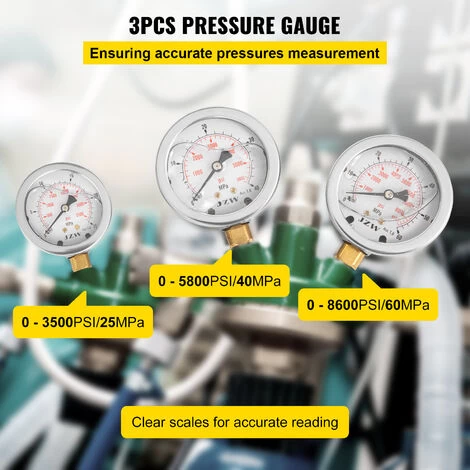

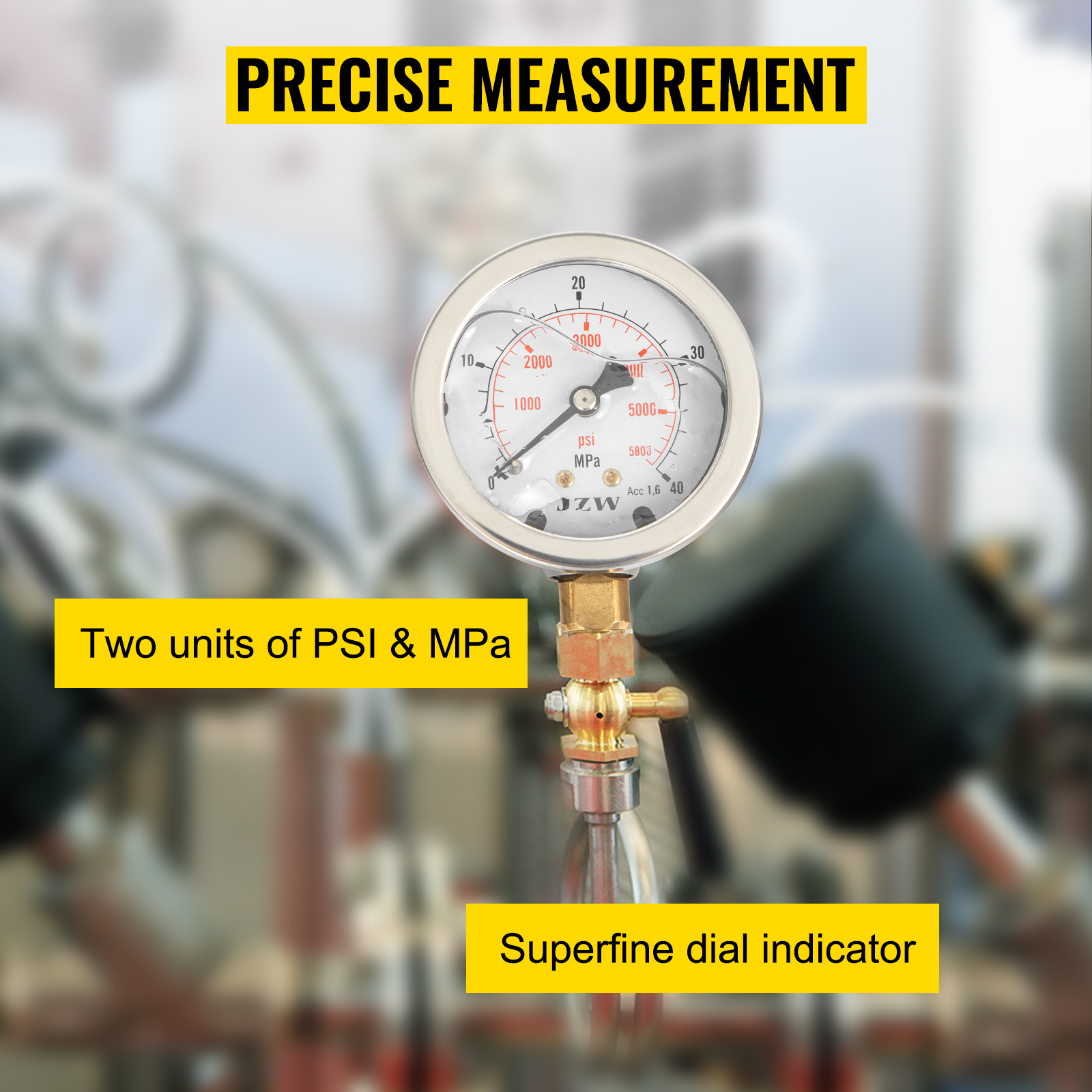

Precise Measurement
Differing
in working pressures of 25/40/60MPa, the three hydraulic test gauges
achieve precise measurement with superfine dial indicators and clear
scales.

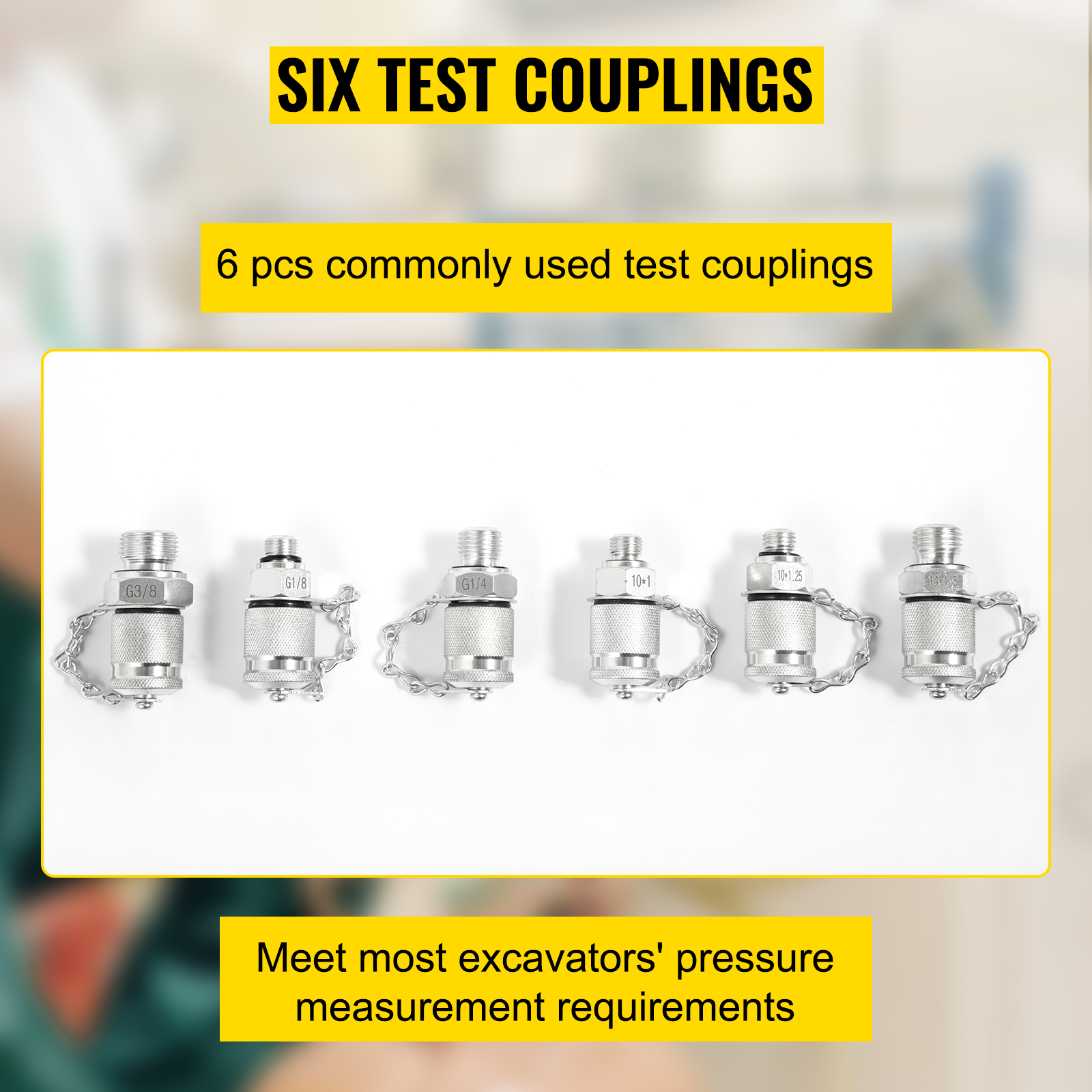

Six Test Couplings
This
pressure gauge kit has six test couplings of different models, which
meet most excavators’ pressure measurement requirements.

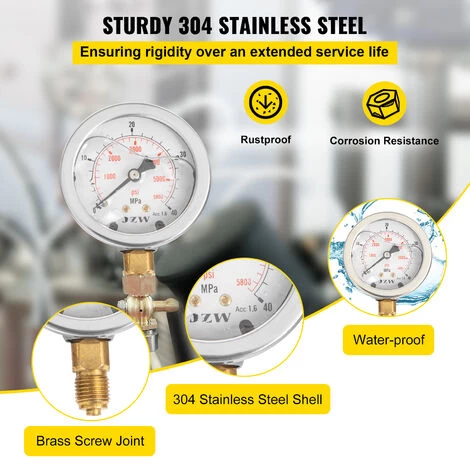

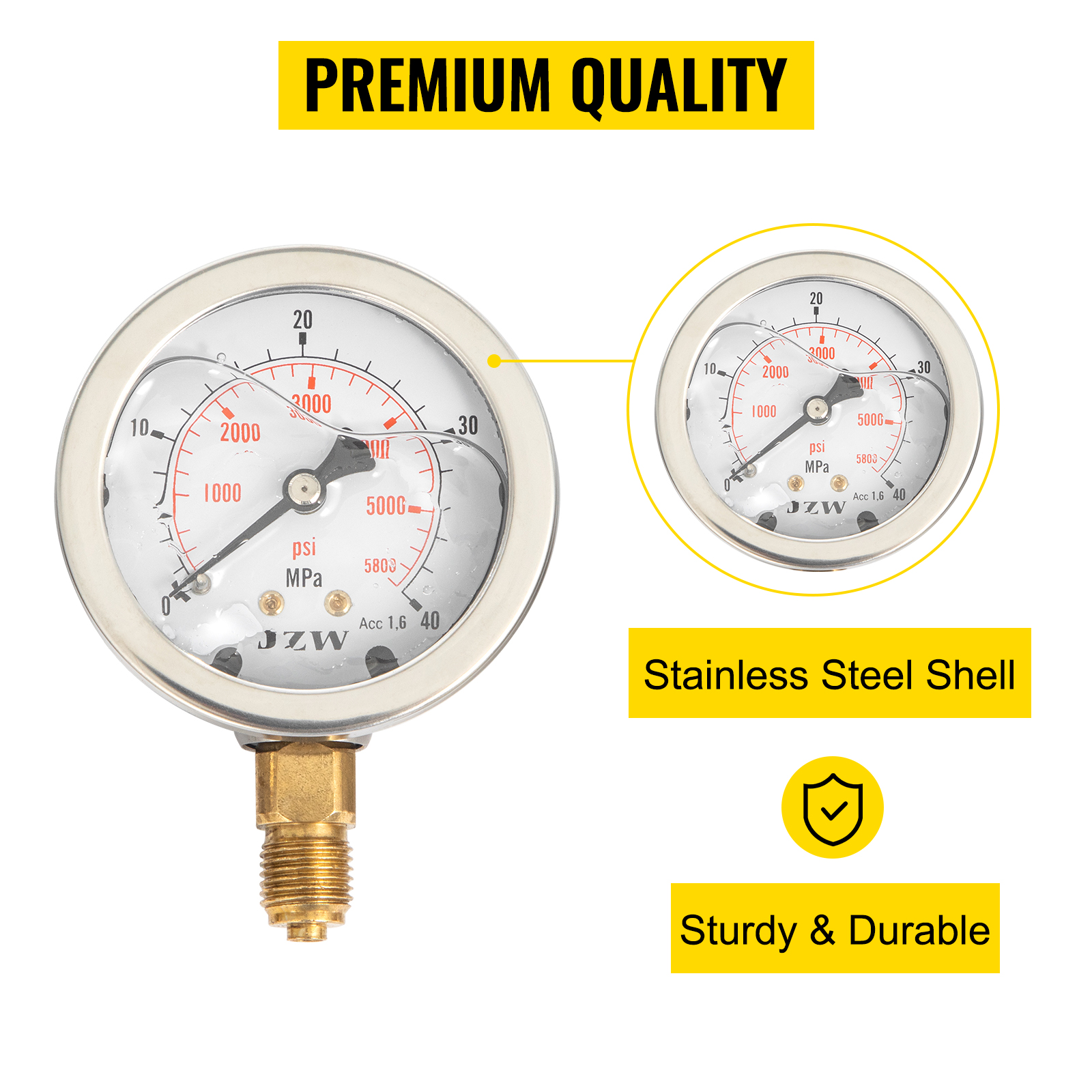

Premium Quality
The
hydraulic gauges are constructed with 304 stainless steel and red
copper. The couplings are made of carbon steel, making the device sturdy
and durable to have a long service life.

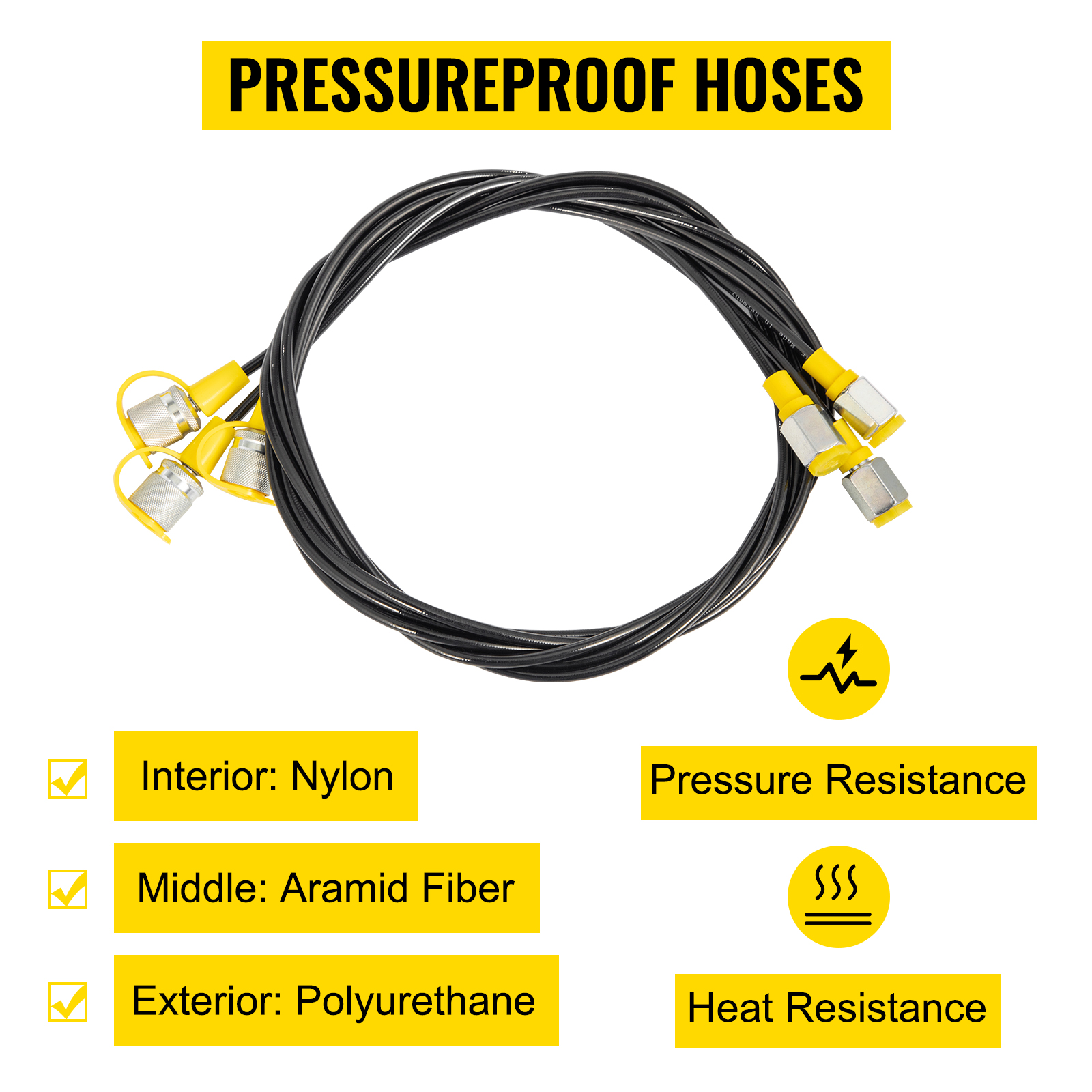

Pressure Proof Hoses
The
test hoses have the characteristics of resistance to heat and pressure
with premium material and particular structure. In addition, 5.25FT/1.6M
long hoses allow you to work from a long distance.

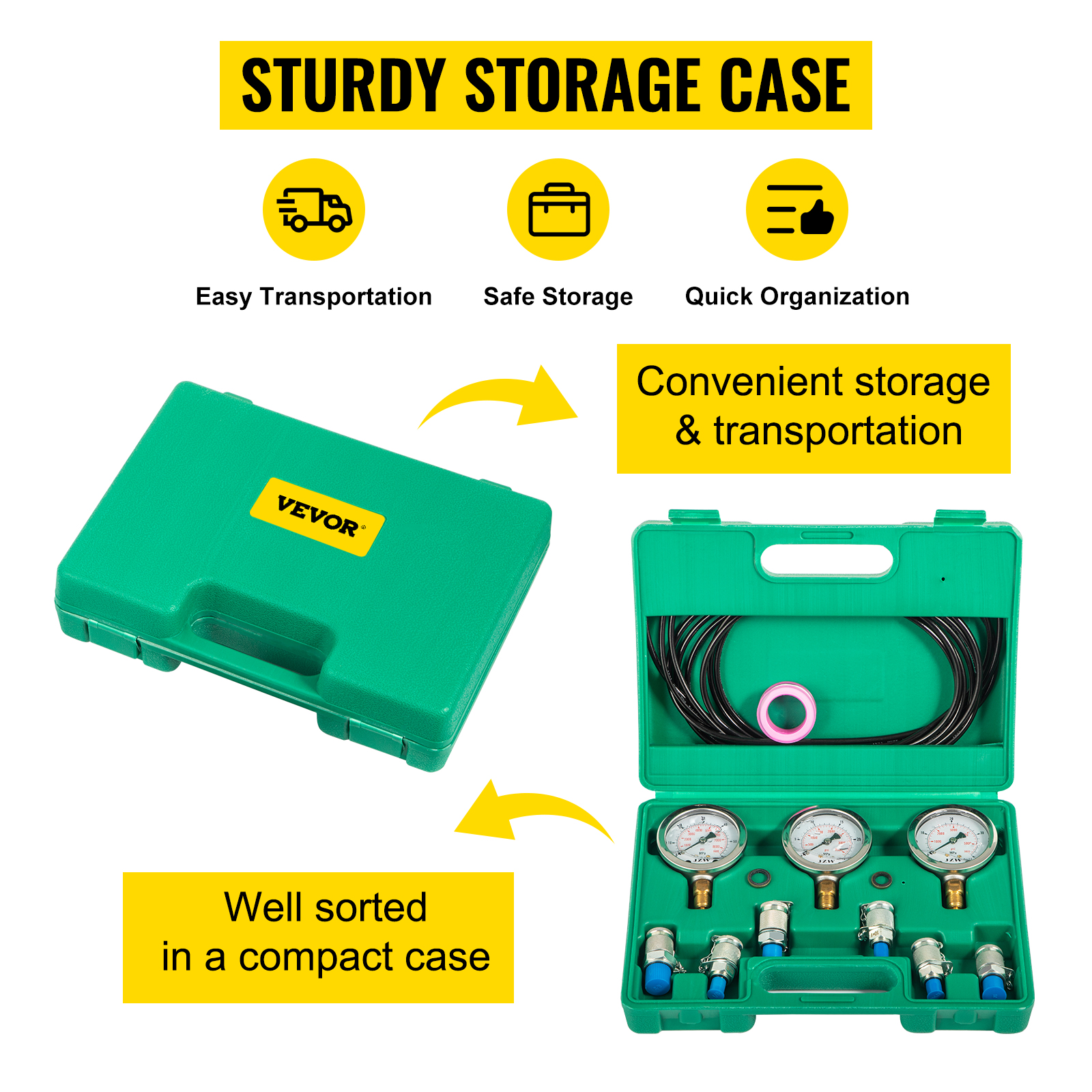

Sturdy Storage Case
The hydraulic kit comes with a robust plastic case. Its card slots design and compact size ensure neat storage and portable use.
Versatile Usage
The
hydraulic gauge test kit is suitable for most excavators and machines
on the market. It is widely used in construction, machinery, shipping,
mining, petroleum, chemical industry, etc.
